DXX2 EPROM Switcher

The Electrongate DXX2 is a small circuit board that allows replacing a 2764 EPROM in the Oberheim DX with a 27128 or 27256 EPROM, and allows switching between two or four separate full length samples (or pairs of samples, for the Percussion channel) using toggle switches.
Up to five DXX2 modules can be used in the DX. The DX cymbal voice uses a different EPROM configuration, so is not compatible with the DXX2.

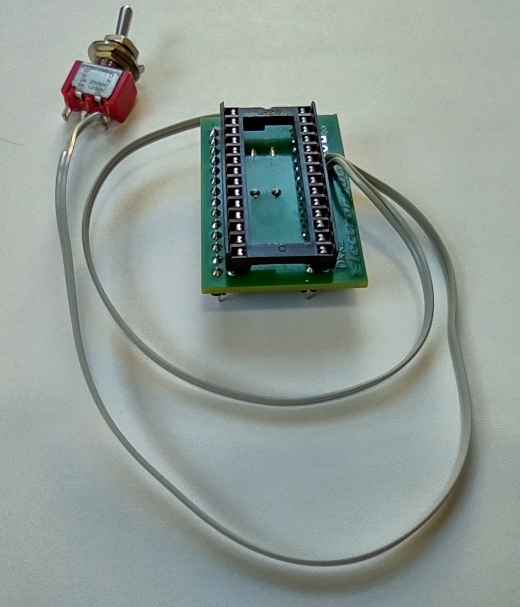

of DXX2 circuit board

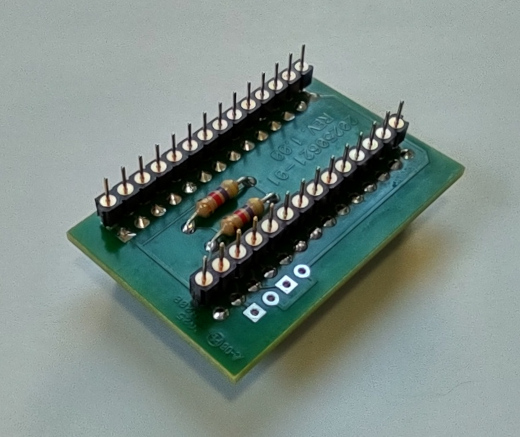

 Bottom of circuit board
    Options:
  • DXX2 DIY: $20. Includes assembled circuit board without switch.
  • DXX2 with one switch: $30 Suitable for a 27128 EPROM to switch between two sounds.
  • DXX2 with two switches: $40 Suitable for a 27256 EPROM to switch between four sound samples.
  • Add programmed EPROM: Add $10 Please specify samples to include. (See this page for available samples.

Ordering Information
All orders must be prepaid by PayPal, Venmo, Zelle, Cashapp, etc. You may use the PayPal shopping cart (below), or you may make your payment in care of pjwhite@electrongate.com. Include your shipping address, specify that payment is for the "DXX2", and let us know which option(s) you would like.



Contact Paul J. White for more information.


PayPal Shopping Cart

DXX2 Basic $20
Includes assembled and tested DXX2 circuit board, no switch or EPROM included.
DXX2 with one switch $30
Includes assembled and tested DXX2 circuit board, with one switch, suitable for a 27128 EPROM.
DXX2 with two switches $40

Includes assembled and tested DXX2 circuit board, with two switches, suitable for a 27256 EPROM.
